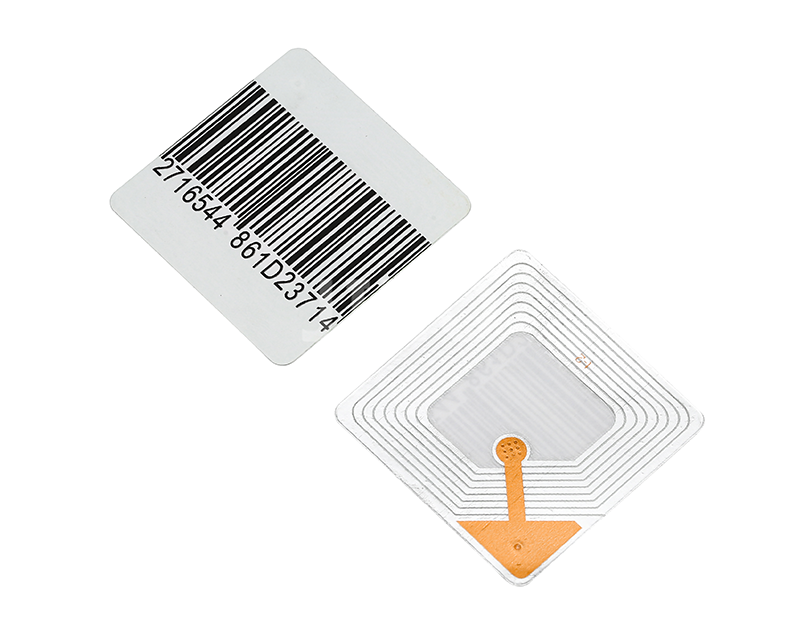

RS1114 RF4040 Label
Product Description:40*40mm RF Label
Part No:RS1114
Label Dimensions (WxH):40*40mm
Distance between labels (D):2mm / 0.079”
Inner Core Diameter (IC):76mm/ 3”
Face Sheet:White Coated Paper
Adhesive:All Purpose Grade
Labels per Roll:1000
Labels per Carton:20,000 (20 Rolls)
Approx. Weight Carton:10.8 kg / 23.8 lbs.
Frequency (MHz) ± 5%:8.2 MHz
Part No:RS1114
Label Dimensions (WxH):40*40mm
Distance between labels (D):2mm / 0.079”
Inner Core Diameter (IC):76mm/ 3”
Face Sheet:White Coated Paper
Adhesive:All Purpose Grade
Labels per Roll:1000
Labels per Carton:20,000 (20 Rolls)
Approx. Weight Carton:10.8 kg / 23.8 lbs.
Frequency (MHz) ± 5%:8.2 MHz
| Characteristics | 1000 Good Labels Per Roll |
| Product Description: | 40*40mm RF Label |
| Part No: | RS1114 |
| Label Dimensions (WxH): | 40*40mm |
| Distance between labels (D): | 2mm / 0.079” |
| Inner Core Diameter (IC): | 76mm/ 3” |
| Face Sheet: | White Coated Paper |
| Adhesive: | All Purpose Grade |
| Labels per Roll: | 1000 |
| Labels per Carton: | 20,000 (20 Rolls) |
| Approx. Weight Carton: | 10.8 kg / 23.8 lbs. |
| Frequency (MHz) ± 5%: | 8.2 MHz |
| Antenna Gate Distance: | 1.4-1.6 m |
| Electrostatic Discharge Tolerance (ESD): | 1.5kv |
| *Minimum Order Quantity (MOQ): | 1 Carton / 20000 labels |
