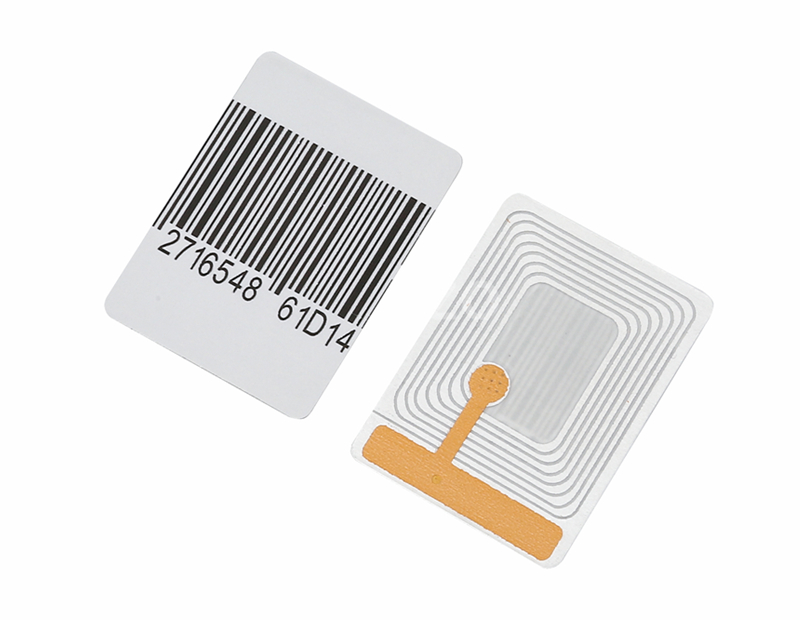

RS1117 RF3040 Label

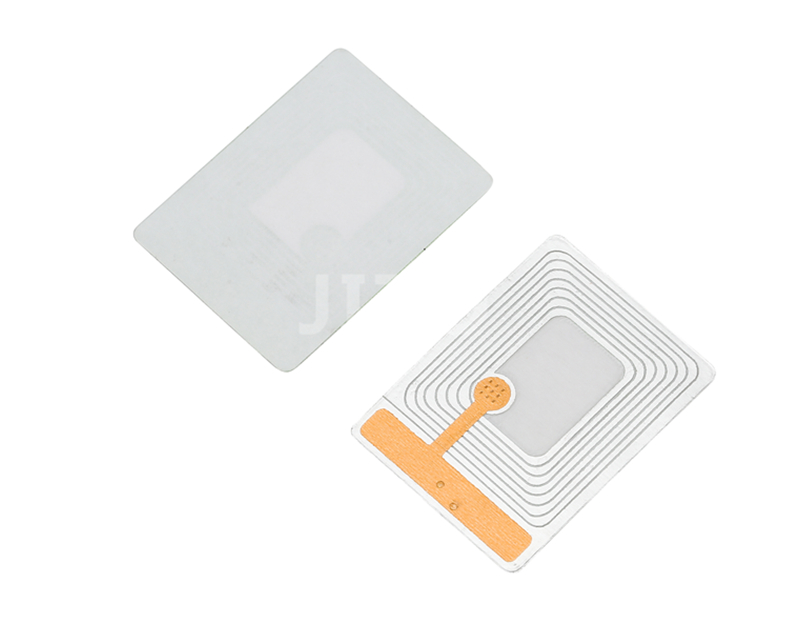

Product Description: 30*40mm RF Label
Part No: RS1117
Label Dimensions (W x H): 30*40mm
Distance between labels (D):3 mm / 0.12”
Liner Width(L):42 mm/ 1.65”
External Roll Diameter (ER):132 mm/ 5.20”
Inner Core Diameter (IC):76 mm/ 3”
Face Sheet: White Coated Paper
Adhesive: All Purpose Grade
Labels per Roll: 1000
Labels per Carton 20,000 (20 Rolls)
Part No: RS1117
Label Dimensions (W x H): 30*40mm
Distance between labels (D):3 mm / 0.12”
Liner Width(L):42 mm/ 1.65”
External Roll Diameter (ER):132 mm/ 5.20”
Inner Core Diameter (IC):76 mm/ 3”
Face Sheet: White Coated Paper
Adhesive: All Purpose Grade
Labels per Roll: 1000
Labels per Carton 20,000 (20 Rolls)
| Characteristics | 1000 Good Labels Per Roll |
| Product Description: | 30*40mm RF Label |
| Part No: | RS1117 |
| Label Dimensions (WxH): | 30*40mm |
| Distance between labels (D): | 3 mm / 0.12” |
| Inner Core Diameter (IC): | 76 mm/ 3” |
| Face Sheet: | White Coated Paper |
| Adhesive: | All Purpose Grade |
| Labels per Roll: | 1000 |
| Labels per Carton: | 20,000 (20 Rolls) |
| Approx. Weight Carton: | 9.4 kg / 20.7 lbs. |
| Frequency (MHz) ± 5%: | 8.2 MHz |
| Antenna Gate Distance: | 1.4-1.6 m |
| Electrostatic Discharge Tolerance (ESD): | 1.5kv |
| *Minimum Order Quantity (MOQ): | 1 Carton / 20000 labels |
Storage conditions:
• Keep dry but do not expose to direct sunlight
• Recommended storage temperature: 18 to 29 ⁰C. Maximum temperature should not exceed 43 ⁰C
• Maximum shelf life of RF labels when stored in recommended conditions in 2 years
• Cases should never be stacked more than 5 high.
*RF circuits have no expiry date, however the adhesive has a useful working life of 2 years from the date of manufacture.
